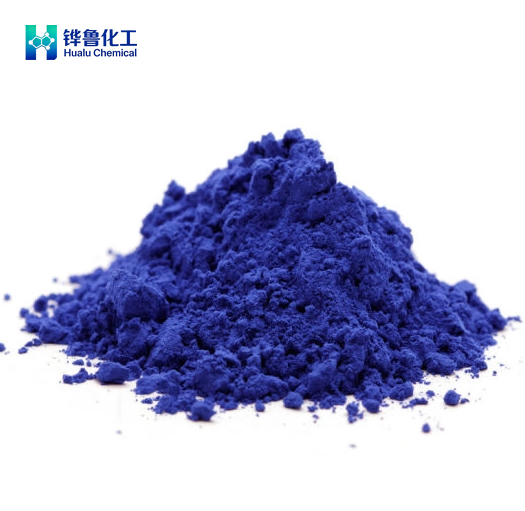

Copper(II) Phthalocyanine

Copper(II) Phthalocyanine

CAS No.: 147-14-8

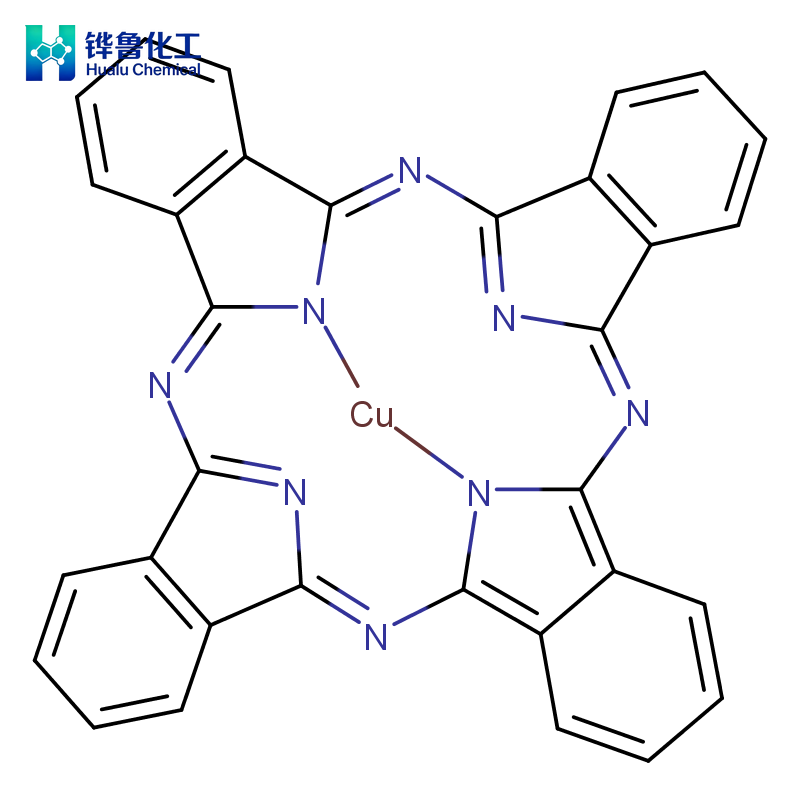

Molecular Formula: C32H16CuN8
Molecular Weight: 576.07
Phone :+8617860115079
WhatsApp :+8617860115079
Email :hualuliam@sdhualuchem.com
90c07ac899b1500ecead6a1c8c56591c
product description
Copper(II) phthalocyanine, known as CuPc, has been used as an electron donor?with fullerene-C60 or phenyl-C61-butyric acid methyl ester (PCBM) in vacuum-deposited organic photovoltaics (OPV).?Power conversion efficiency of about 1% has been achieved [2] and improved efficiency of 4% with pentacene-doped CuPc layer .


Chemical Properties
PropertyValue
Melting point

600°C (dec.)

Density

1.62[at 20℃]

Storage temp.

Inert atmosphere,Room Temperature

Solubility

insoluble in H2O, ethanol; soluble in concHSO 4

Colour Index

74160

Form

Fine Crystalline Powder

Color

Dark blue

Odor

Odorless

Water Solubility

<0.1 g/100 mL at 20 ºC

λmax

602nm(CHCl3)(lit.)

Hydrolytic Sensitivity

4: no reaction with water under neutral conditions

Merck

14,2520

BRN

4121848

Exposure limits

ACGIH: TWA 1 mg/m3NIOSH: IDLH 100 mg/m3; TWA 1 mg/m3

InChIKey

XCJYREBRNVKWGJ-UHFFFAOYSA-N

LogP

-1 at 23℃

NIST Chemistry Reference

Copper phthalocyanine(147-14-8)

EPA Substance Registry System

C.I. Pigment Blue 15 (147-14-8)

Absorption

λmax 678 nm (DMF)


Safety Information

PropertyValue
Safety Statements

22-24/25

WGK Germany

-

RTECS

GL8510000

TSCA

Yes

HS Code

32041300

Hazardous Substances Data

147-14-8(Hazardous Substances Data)

Toxicity

LD50 intraperitoneal in rat: > 3gm/kg


Product Usage

Copper(II) phthalocyanine is a high-performance organic pigment with brilliant color, strong tinting strength, and excellent weather resistance. In the coatings industry, it is widely used in automotive paints, architectural coatings, and marine paints, imparting bright blue or green hues to the coating. In the ink industry, it serves as an important colorant for color printing inks and packaging inks, offering excellent migration resistance and heat stability. In plastics and rubber, it is used to color polyethylene, polypropylene, and other products, maintaining long-term stability. Additionally, it plays significant roles in textile printing, stationery, and artists' pigments. Its advantages include resistance to acids, alkalis, and solvents, as well as being non-toxic and environmentally friendly.

Factory Showcase
拼图_美图设计室-(1)
Quality Control Lab
实验室

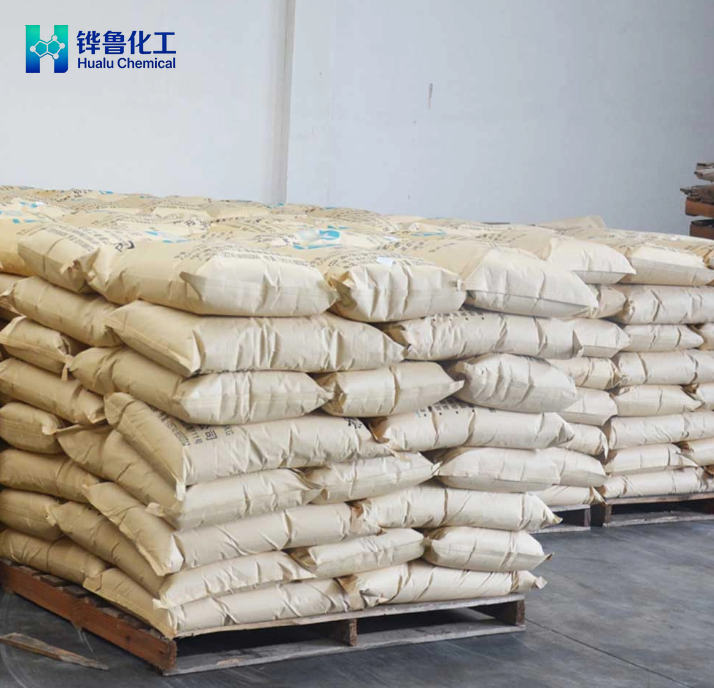

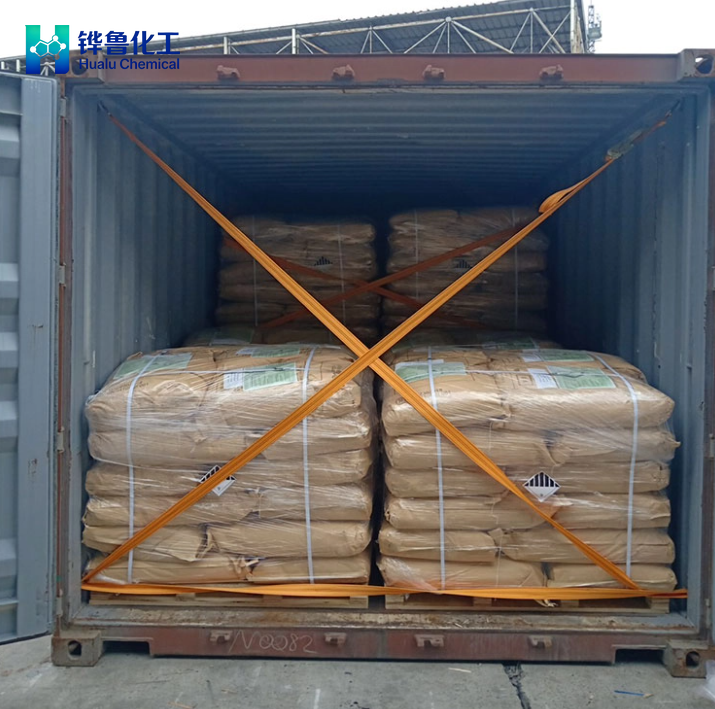

Shipping And Transportation
